Liqua-Tech®
The Liqua-Tech Corporation takes pride in precision manufacturing. Their flowmeters and replacement measuring chambers meet stringent calibration and verification requirements and 100% inspection on all metering components ensures every product manufactured conforms to exact tolerances. The company has been independently owned and operated in Northern California for over 36 years.

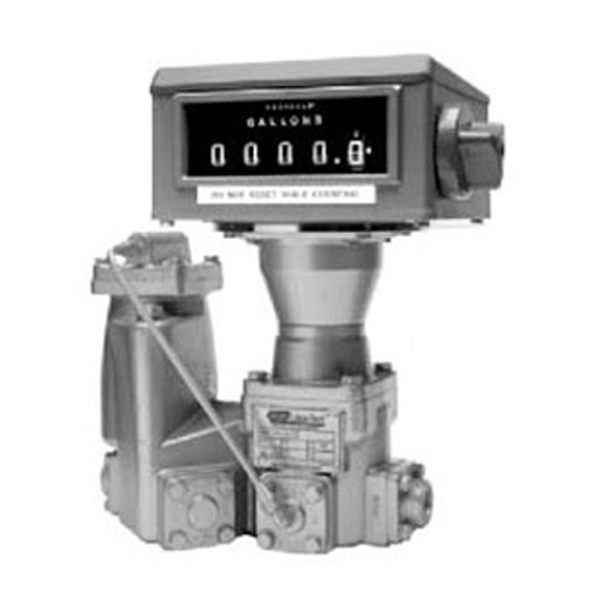

LPM-102
Designed for retail sales dispensing units, the LPM-102 offers the widest flow range available in a meter of this type.
- Vapor Eliminator
- Strainer
- Differential Valve
- Optional Trac-Bearing or Low-Flow Chamber
Specifications:
Rate of Flow:
3.0 to 18.0 GPM
12 to 68GPM
Working Pressure:
350 psi(24 bar) max. (24.6 kg/cm2)
Connections:
Standard assembly has an inlet at left and outlet to right with 3/4" and 1" female pipe threads available.
Register:
Veeder-Root, print or non-print
Temperature Compensator:
Compensates to 60°F (15°C)
Range:
-10°F to 125°F
-23°C to 52°C
